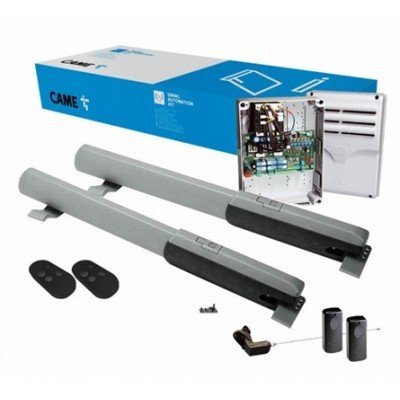

CAME ATI A5000 swing gate motor 5 m 400 kg in Oman
Came Swing Gate Motors

CAME ATI A5000 Swing Gate Motor in Oman | 5 m, 400 kg, 230 V

In stockSKU 001A5000

Genuine CAME ATI A5000, code 001A5000, an irreversible 230 V swing gate motor for leaves up to 5 m and 400 kg. Came rate it for 15 cycles an hour and design the ATI for houses and apartment blocks. A two leaf gate needs two motors and one control panel. Held in Al Khuwair and fitted by our own engineers.

Price
Original price was: 588 OMR.Current price is: 530 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

The CAME ATI A5000 in Oman is an irreversible 230 volt swing gate motor for leaves up to 5 metres. Came make the ATI for houses and apartment blocks. We stock it in Al Khuwair and our engineers fit it.

CAME ATI A5000 specifications

Reference001A5000
Max leaf5 m, up to 400 kg
Motor230 Vac, irreversible
Opening time30 to 40 s at 90°
Cycles per hour15
Thrust400 to 4000 N
Power260 W, 1.2 A
Limit switchesOpening only
Max opening120°
ProtectionIP44
Temperature-20 to +55 °C

Length or weight, not both

Leaf length sets the weight this motor can carry. A longer leaf must be lighter.

Leaf lengthMax weight
5 m400 kg
4 m500 kg
3 m600 kg
2.5 m800 kg
2 m1000 kg

The 1000 kg some websites quote is a 2 metre leaf. At 5 metres our BFT Phobos AC A50 carries 500 kg. At 4 metres the BFT Phobos BT B40 carries 700 kg. Weigh your leaf before you choose.

Opening limit switch only

This motor has limit switches on opening only. The A5000A, a different code, has them on opening and closing.

On closing, the gate must stop against something solid, so fit a mechanical stop. Tell us which version your gate already has before you order.

Houses and apartments, not busy entrances

Came rate it for 15 cycles an hour and design the ATI for residential gates. That suits a villa or a small block. It does not suit a busy yard.

The motor has thermal protection at 150 degrees, and Came say the worm screw is always covered. Both help where sand blows.

What a two leaf CAME ATI A5000 gate needs

A pair of leaves needs two motors and one control panel. Photocells, handsets and a flashing light are extra. Ask us for the whole set and we price it together.

Common questions

My leaf is 4 metres and 600 kg. Will it do?
No. At 4 metres this motor carries 500 kg. Weigh the leaf, then ask us for a motor that suits it.

Does it hold the gate shut?
Yes. The gearbox is irreversible, so nobody can push the leaf open. A keyed flap covers the manual release for power cuts.

Is there a 24 volt version?
Yes. Came make the ATI in 24 volts as well, and those can run through a power cut. This one is the 230 volt motor.

Which control panel does it take?
Came list the ZA3P, 801QA-0110 and 801QA-0120. We match the panel to the motor before you order.

Technical data

Product Specifications

CAME ATI A5000 Specifications

  • Max leaf length: 5 m
  • Max leaf weight: 400 kg at 5 m, 500 kg at 4 m, 600 kg at 3 m
  • Max leaf weight, shorter leaves: 800 kg at 2.5 m, 1000 kg at 2 m
  • Motor supply: 230 Vac, 50/60 Hz
  • Locking: Irreversible
  • Limit switches: Opening only
  • Max opening angle: 120°
  • Opening time at 90°: 30 to 40 s
  • Cycles per hour: 15
  • Thrust: 400 to 4000 N
  • Power: 260 W
  • Absorption: 1.2 A
  • Motor thermal protection: 150 °C
  • Obstacle detection: Amperometric
  • Protection rating: IP44
  • Operating temperature: -20 to +55 °C
  • Weight: 11 kg
  • Control panels: ZA3P, 801QA-0110, 801QA-0120
  • Intended use: Residential and condominium gates
  • Brand: Came
  • Model: ATI A5000
  • Code: 001A5000
  • EAN: 8050456004147
  • Not the same as: ATI A5000A (opening and closing limit switches), ATI A3000 (3 m leaves), or the 24 V ATI models
