BFT ELI BT A40 Swing Gate Motor in Oman

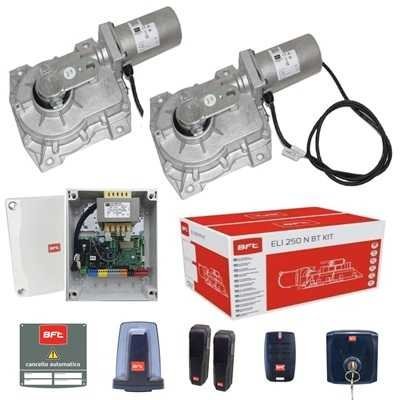

BFT ELI BT A40 Underground Swing Gate Motor

• Reference: P930134 00002
• Part number: 2601455
• Underground electromechanical operator 24V for swing gates up to 4 m in length

Technical Data Sheets

• Opening time to 90 degrees: 14 sec (with slowdown)
• Impact reaction: Electronic clutch (with control panel)
• Limit switch standard: Relative encoder
• Protection rating: IP67
• Limit switch optional: Magnetic
• Environmental conditions: -20C to +55C
• Mechanical stops: Opening + Closing
• Interconnectivity: No
• Compatible control unit: THALIA BT A80, THALIA, THALIA P
• Motor voltage: 24V
• Max. length gate panel without electric lock: 2.5 m
• Max. motor torque: 350 Nm
• Max. width of door/gate wing: 4 m
• Max. opening cycles per hour: Continuous
• Maximum angle: 120 degrees
• Speed: 1.1 Rpm
• Release: Lever or lever with personalised key

Note: price not listed on source site (contact for quote).
