BENINCA BULL8M Sliding Gate Motor in Oman

BENINCA BULL8M | 800 KG

• Residential use
• 230 Vac
• Up to 800 kg
• Integrated device that guarantees maximum precision during the automation manoeuvring steps
• 64 transmitters storable inside the receiver
• Release device entirely of metal equipped with personalized release key
• Maximum safety and accuracy during the operating phases of the gate thanks to the built-in encoder device
• The lines and the design make BULL a product perfectly suitable in the most different architectural contexts
• Available in kit with all accessories

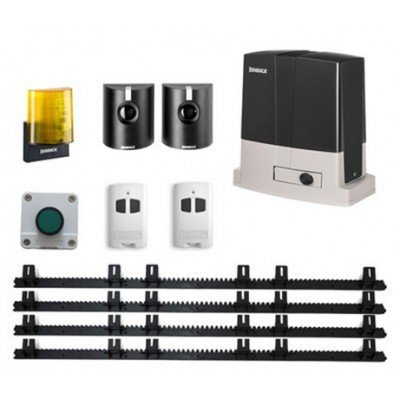

BENINCA BULL8M Kit Includes

• 1 x BENINCA BULL8M Sliding Gate Motor
• 2 x BENINCA Remote Control 433.92 MHz
• 1 x Pair photocells for outdoor use
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m
• 1 x Blinker light
• 1 x Push Button

BENINCA BULL8M Technical Data

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 2.6 A
• Maximum thrust: 940 N
• Opening speed: 10.5 m/min
• Duty cycle: 30%
• Protection level: IP44
• Built-in control unit: Yes
• Integrated receiver: Yes
• Encoder: Yes
• Virtual encoder: No
• Magnetic limit switches: No
• Pinion for rack: M4 Z18
• Operating temperature: -20C to +50C
• Lubrication: Grease
• Maximum gate weight: 800 kg
• Weight: 13.6 kg
• Kit weight: 14.5 kg
