BENINCA BULL5M Sliding Gate Motor in Oman

BENINCA BULL5M | 500 KG

• Residential use
• 230 Vac
• Up to 500 kg
• Integrated device that guarantees maximum precision during the automation manoeuvring steps
• 433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
• 64 transmitters storable inside the receiver
• 230Vac motor gear for sliding gates for residential use up to 500kg
• Release device entirely of metal equipped with personalized release key
• Maximum safety and accuracy during the operating phases of the gate thanks to the built-in encoder device
• The lines and the design make BULL a product perfectly suitable in the most different architectural contexts
• Available in kit with all accessories

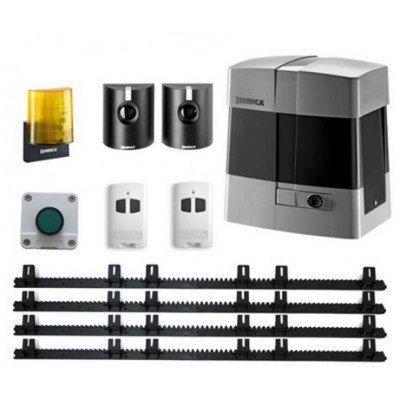

BENINCA BULL5M Kit Includes

• 1 x BENINCA BULL5M Sliding Gate Motor
• 2 x Beninca Remote Control 433.92 MHz
• 1 x Pair photocells for outdoor use
• 1 x Control Unit (Inbuilt in the motor)
• 4 x Nylon Rack 1m
• 1 x Blinker light
• 1 x Push Button

BENINCA 500 KG Technical Data

• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1.3 A
• Maximum thrust: 650 N
• Opening speed: 10.5 m/min
• Duty cycle: 30%
• Protection level: IP44
• Built-in control unit: yes
• Integrated receiver: yes
• Encoder: yes
• Virtual encoder: no
• Magnetic limit switches: no
• Pinion for rack: M4 Z18
• Operating temperature: -20C to +50C
• Lubrication: Grease
• Maximum gate weight: 500 kg
• Weight: 11.3 kg
• Kit weight: 12.1 kg
