BENINCA BULL624SW Sliding Gate Opener 600 Kg
- BULL624SW Geared motor
- 24 Vdc gear motor for intensive use with integrated control unit and virtual encoder
- 24 Vdc, up to 600 kg, 64 transmitters storable inside the receiver
- Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator
- Control unit with trimmers and dip-switches
- The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety
- Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah)
- Anti-crushing system with amperometric obstacle detection
- Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP
Technical Data
- Power supply: 230 Vac (50-60Hz)
- Motor supply: 24 Vdc
- Max absorbed current: 3.2 / 1.7 A
- Maximum thrust: 715 N
- Opening speed: 5.5 to 11 m/min
- Duty cycle: Intensive use
- Protection level: IP44
- Built-in control unit: Yes
- Integrated receiver: Yes
- Virtual encoder: Yes
- Magnetic limit switches: Yes
- Pinion for rack: M4 Z14
- Operating temperature: -20C to +50C
- Lubrication: Grease
- Maximum gate weight: 600 kg
- Weight: 8.0 kg
- Kit weight: 8.5 kg

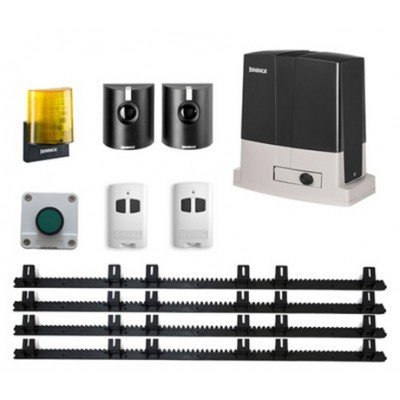

BENINCA BULL624SW Complete Kit
- 1 x BENINCA BULL624SW 24 Vdc gear motor for intensive use
- 1 x PUPILLA.T Pair of adjustable photocells
- 1 x LAMPY Flashing light 12 to 255 Vac
- 1 x TO.GO2VA 2-channel 433.92 MHz transmitter
- 4 x Nylon rack
- 1 x Push button
