Beninca BULL20M 230V sliding gate motor in Oman
Beninca Sliding Gate Motors

BENINCA BULL20M Sliding Gate Motor in Oman

In stockSKU BULL20M

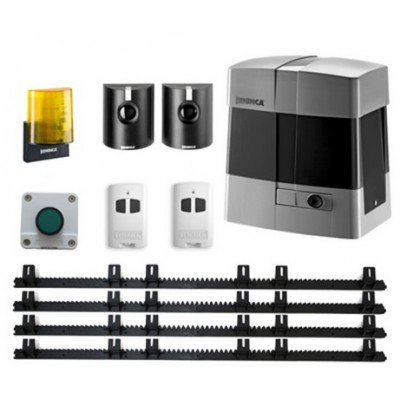

Beninca BULL20M 230 V sliding gate motor for gates up to 2000 kg, with the control unit, a 64-transmitter receiver and an encoder all built into the housing. The encoder handles anti-crush and force management, so the gate stops rather than pushes. 10.5 m/min, 40% duty cycle, IP44, M4 Z18 pinion. Note that Beninca pairs this motor with galvanised steel rack — tell us your gate weight and run length and we will quote the right one. Stocked and fitted in Muscat.

Price
Original price was: 420 OMR.Current price is: 412 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

The Beninca BULL20M is a 230 V sliding gate motor for gates up to 2000 kg. The control unit, the receiver and the encoder are all built into the housing. We stock the Beninca BULL20M in Oman and fit and commission it ourselves.

Beninca BULL20M specifications

Power supply230 Vac, 50 to 60 Hz
Max absorbed current2.9 A
Maximum thrust1667 N
Opening speed10.5 m per minute
Duty cycle40 percent
Protection levelIP44
Built in control unitYes
Integrated receiverYes, 64 transmitters
EncoderYes
Magnetic limit switchesNo
PinionM4 Z18
Maximum gate weight2000 kg
Operating temperature−20 °C to +50 °C
Weight21.1 kg

The rack matters more than the motor

The Beninca BULL20M in Oman ships as a kit, and one item in it needs attention. Beninca pairs this motor with galvanised steel rack, code RI.M4F, and sells that rack separately. Our kit ships nylon rack instead.

RackSuits
NylonLighter gates, quieter
Galvanised steelHeavy gates, long runs

On a 2000 kg gate we would fit steel. Tell us the gate weight and the length of the run. We will quote the right rack rather than assume.

Which BULL20 is this

Beninca builds four versions and the differences are not cosmetic.

ModelDifference
BULL20MStandard, no magnetic limit switches
BULL20M.SAdds magnetic limit switches
BULL20 HERated for intensive use
BULL20 HE.SIntensive use and magnetic limit switches

Ours is the plain BULL20M. Its spec sheet says no magnetic limit switches, which is correct for that version.

Installing the Beninca BULL20M in Oman

The base plate goes down first and it has to sit level and square to the gate. We bolt the motor, set the rack height against the pinion, then let the encoder learn the run. Photocells go across the opening and handsets pair last.

Common questions

Is nylon rack strong enough for 2000 kg? We would not use it. Beninca specifies galvanised steel for this motor, and steel is what a heavy gate on a long run needs.

What does the S mean? Magnetic limit switches. This version uses the encoder instead, which is fine on most gates and cheaper to install.

How does it know it has hit something? The encoder counts the motor and watches for resistance. A gate that meets an obstacle stops rather than pushing.

Do I need a separate control panel? No. The panel and the receiver are inside the motor already.

Lighter gates take the BULL15M, the BULL8M or the BULL5M. Browse the range under Beninca sliding gate motors.

Technical data

Product Specifications

Beninca BULL20M Specifications

  • Brand: Beninca
  • Model: BULL20M
  • Type: 230 Vac sliding gate operator with integrated control unit and encoder
  • Power supply: 230 Vac, 50–60 Hz
  • Max absorbed current: 2.9 A
  • Maximum thrust: 1667 N
  • Opening speed: 10.5 m/min
  • Maximum gate weight: 2000 kg
  • Duty cycle: 40%
  • Protection level: IP44
  • Built-in control unit: yes
  • Integrated receiver: yes, stores 64 transmitters
  • Encoder: yes — anti-crush and force management
  • Magnetic limit switches: no — the BULL20M.S has them
  • Pinion: M4 Z18
  • Rack: galvanised steel recommended, Beninca code RI.M4F, supplied separately
  • Release: metal mechanism for manual override
  • Operating temperature: −20 °C to +50 °C
  • Weight: 21.1 kg
  • Other versions: BULL20M.S, BULL20 HE, BULL20 HE.S
  • Country of origin: Italy
