Beninca CP BULL RI gate control board in Oman
Beninca Sliding Gate Motors

Beninca CP BULL RI Control Board in Oman | For BULL15M and BULL20M

In stockSKU 9688231

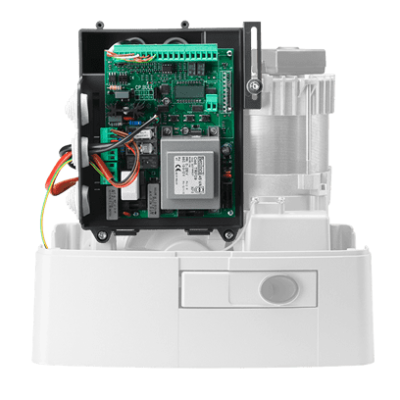

Genuine Beninca CP.BULL-RI, the built-in control board for the BULL10M, BULL15M and BULL20M sliding gate operators. 230 Vac, integrated LCD display, 433.92 MHz 64-code receiver, encoder management and electronic braking. This is the board, not the motor. Held in Al Khuwair and fitted by our own engineers.

Price
Original price was: 160 OMR.Current price is: 153 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

The Beninca CP BULL RI in Oman is the control board that sits inside a BULL sliding gate operator. It is the part, not the motor. If your gate has stopped and the board has failed, this replaces it for a fraction of a new operator.

Which motors the Beninca CP BULL RI fits

Beninca list three: the BULL10M, the BULL15M and the BULL20M. We stock two of them.

Your motorBoard
BULL20M, 2000 kgThis board
BULL15M, 1500 kgThis board
BULL8M, 800 kgCP BULL8, a different board

Order by the motor, not by the look of the board. The two are not interchangeable.

Beninca CP BULL RI specifications

ReferenceCP.BULL-RI
Supply230 Vac, 50/60 Hz
Motor output230 Vac
DisplayIntegrated LCD
Receiver433.92 MHz, 64 codes
Safety edge inputN.C. or 8K2

What the display changes

A board with a screen tells you why it stopped. A board with dip switches makes you guess. On a gate that has already failed once, that difference is an hour of somebody’s time.

It also counts manoeuvres and can be set to flag when a service is due, and the programming can be locked behind a password so nobody resets the force settings.

Autosetting, and when it works

The board reads the motor’s encoder and sets the working parameters itself. That saves an installer real time on commissioning.

It only works where the motor has an encoder. The BULL range does, which is why this pairing runs itself and some other Beninca combinations do not.

Common questions

My gate is a BULL8M. Is this the right board?
No. The BULL8M takes the CP BULL8. Ask us and we will match the board to your motor before you pay for it.

Does it arrive in a housing or as a bare board?
Beninca call it an internal control unit, so it is designed to sit inside the operator. Tell us whether you are replacing a board or building a separate panel and we will confirm what you need.

What is Advantouch and do I need one?
It is Beninca’s handheld programmer. It sets parameters and manages remote handsets faster than the buttons do. An installer with several sites wants one. For a single gate you do not need it.

The display is showing a maintenance warning. Is something broken?
Not necessarily. The board counts cycles and flags when a set number is reached. It is a service reminder, and on a busy compound gate it is worth acting on rather than clearing.

Technical data

Product Specifications

Beninca CP BULL RI Specifications

  • Fits: Beninca BULL10M, BULL15M, BULL20M sliding gate operators
  • Control unit supply: 230 Vac, 50/60 Hz
  • Motor supply: 230 Vac
  • Max motor power: 1000 W
  • Display: Integrated LCD
  • Radio receiver: Integrated, 433.92 MHz, 64 codes
  • Encodings: Advanced Rolling Code, Rolling Code, Fixed Code
  • Logics: Automatic, semi-automatic, deadman
  • Encoder: Input for obstacle detection and parameter autosetting
  • Command inputs: Open, close, pedestrian, step by step, stop
  • Photocell inputs: PHOT O and PHOT C, independently programmable
  • Safety edge input: N.C. or 8K2
  • Outputs: Gate-open indicator, service light or second radio channel, photocell test, flashing light
  • Torque: Electronic adjustment
  • Slowdown: Adjustable
  • Braking: Electronic, for a precise stop on heavy gates
  • Terminals: Removable
  • Programming device: Advantouch compatible
  • Manoeuvre counter: Yes, with settable maintenance warning
  • Programming password: Yes
  • Protection rating: IP54
  • Brand: Beninca
  • Model: CP.BULL-RI
  • SKU: 9688231
  • Product type: Control board. Not a gate motor
  • Not the same as: CP.BULL8 for the BULL8M, or CP.BULL-REV
