CAME FROG-AE underground swing gate motor in Oman
Came Swing Gate Motors

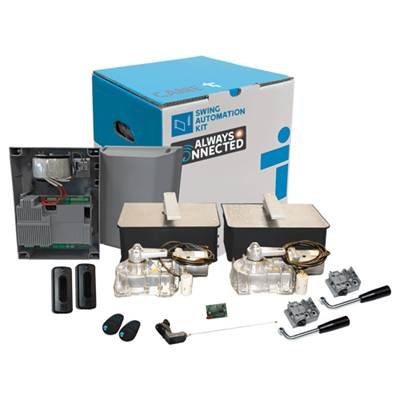

CAME FROG-AE Underground Swing Gate Motor in Oman

In stockSKU 001FROG-AE

The CAME FROG-AE is a 230 V underground swing gate motor with encoder for leaves up to 3.5 m and 400 kg, with IP67 protection. In stock in Oman, installed by our own engineers.

Price
Original price was: 585 OMR.Current price is: 579 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

Our CAME FROG-AE Oman stock is an underground swing gate motor for leaves up to 3.5 m. It runs on normal 230 V mains power. It has an encoder. We hold it in stock, and our engineers install it.

CAME FROG-AE Oman specifications

BrandCAME
ModelFROG-AE
Product code001FROG-AE
Maximum leaf length3.5 m
Maximum leaf weight800 kg at 2 m, 600 kg at 2.5 m, 400 kg at 3.5 m
Supply230 V AC, 50/60 Hz
Power460 W
Absorption1.9 A
Torque320 Nm
Opening time at 90°18 seconds
Cycles per hour11
Duty cycle30%
EncoderYes
Maximum opening angle110°
Motor thermal protection150 °C
ProtectionIP67
Working temperature-20 °C to +55 °C

What’s included

The page lists the FROG-AE gearmotor only. A control panel and a foundation box are separate items. Ask us for a full quote with all the parts your gate needs.

CAME FROG-AE Oman installation

Our engineers dig the pit and set the foundation box in concrete. They fit the gearmotor and the arms to the leaf. They wire the 230 V supply and the control panel. They then set the travel and test the safety devices.

Heavier leaves may need the three-phase CAME SUPER FROG. Prefer an above-ground kit? See the LIFE OP5 UNI swing gate kit. You can also browse more CAME swing gate motors or the full swing gate motor range.

Common questions

Does it run on single-phase power?

Yes. CAME lists the FROG-AE on a 230 V supply, so a normal villa supply is enough.

Which control panel does it use?

CAME’s brochure lists the ZM3E panel for two-leaf gates. Ask us to confirm the panel for your gate.

What does the encoder do?

It reports the leaf position to the control panel. This helps the panel control the leaf movement.

How wide can the gate open?

The leaf opens up to 110°. A chain lever gives up to 180° on leaves of 2 m or less.

Technical data

Product Specifications

CAME FROG-AE Underground Swing Gate Motor Specifications

  • Brand: CAME
  • Model: FROG-AE
  • Product code: 001FROG-AE
  • Maximum leaf length: 3.5 m
  • Maximum leaf weight: 800 kg at 2 m, 600 kg at 2.5 m, 400 kg at 3.5 m
  • Supply: 230 V AC, 50/60 Hz
  • Power: 460 W
  • Absorption: 1.9 A
  • Torque: 320 Nm
  • Opening time at 90°: 18 seconds
  • Cycles per hour: 11
  • Duty cycle: 30%
  • Encoder: Yes
  • Maximum opening angle: 110°
  • Motor thermal protection: 150 °C
  • Protection rating: IP67
  • Working temperature: -20 °C to +55 °C
