CAME SUPER FROG FROG-MD underground swing gate motor in Oman
Came Swing Gate Motors

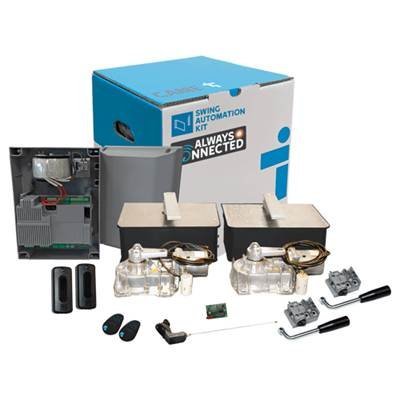

CAME SUPER FROG FROG-MD Underground Swing Gate Motor in Oman

In stockSKU 001FROG-MD

The CAME SUPER FROG (FROG-MD) is a right-hand underground swing gate motor for leaves up to 8 m, with IP67 protection and a three-phase 230/400 V supply. In stock in Oman, installed by our own engineers.

Price
Original price was: 585 OMR.Current price is: 579 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

Our CAME SUPER FROG Oman stock is an underground swing gate motor. It is the right-hand FROG-MD for leaves up to 8 m. It needs a three-phase supply. We hold it in stock, and our engineers install it.

CAME SUPER FROG Oman specifications

BrandCAME
ModelSUPER FROG FROG-MD (right-hand)
Product codesFROG-MD, 001FROG-MD
Maximum leaf length8 m
Maximum leaf weight1500 kg under 4 m, 1200 kg at 4 m, 1000 kg at 5 m, 800 kg at 6 m, 700 kg at 7 m, 600 kg at 8 m
Supply230/400 V AC, three phase, 50/60 Hz
Power600 W
Absorption2.5 A maximum
Torque1000 Nm maximum
Opening time45 seconds for 90°
Maximum opening angle95°
Duty cycle50%
TypeIrreversible, reduction ratio 1/1800
Limit switchesAdjustable mechanical
ProtectionIP67
Working temperature-20 °C to +55 °C
WeightAbout 90 kg

What’s included

The page lists the right-hand FROG-MD gearmotor only. A control panel, a foundation box and accessories are separate items. Ask us for a full quote with all the parts your gate needs.

CAME SUPER FROG Oman installation

Our engineers dig the pit and set the foundation box in concrete. They fit the gearmotor and the arms to the leaf. They wire the three-phase supply and the control panel. They then set the travel and test the safety devices.

Prefer an above-ground motor? See the Nice Toona 7. You can also browse more CAME swing gate motors or the full swing gate motor range.

Common questions

Do I need three-phase power?

Yes. CAME lists this motor on a 230/400 V three-phase supply. Check your site supply with us first.

What is the difference between the FROG-MD and FROG-MS?

The FROG-MD is the right-hand unit. The FROG-MS is the left-hand twin. A double gate usually needs one of each.

How heavy a leaf can it move?

The limit falls as the leaf gets longer. It is 1200 kg at 4 m and 600 kg at 8 m. Send us your leaf size.

Does it need a foundation box?

Yes. The motor sits in a box set into a concrete pit. Ask us to quote the box with the motor.

Technical data

Product Specifications

CAME SUPER FROG Underground Swing Gate Motor Specifications

  • Brand: CAME
  • Model: SUPER FROG FROG-MD (right-hand)
  • Product codes: FROG-MD, 001FROG-MD
  • Maximum leaf length: 8 m
  • Maximum leaf weight: 1500 kg under 4 m, 1200 kg at 4 m, 1000 kg at 5 m, 800 kg at 6 m, 700 kg at 7 m, 600 kg at 8 m
  • Supply: 230/400 V AC, three phase, 50/60 Hz
  • Power: 600 W
  • Absorption: 2.5 A maximum
  • Torque: 1000 Nm maximum
  • Opening time: 45 seconds for 90°
  • Maximum opening angle: 95°
  • Duty cycle: 50%
  • Type: Irreversible, reduction ratio 1/1800
  • Limit switches: Adjustable mechanical
  • Protection rating: IP67
  • Working temperature: -20 °C to +55 °C
  • Weight: About 90 kg
