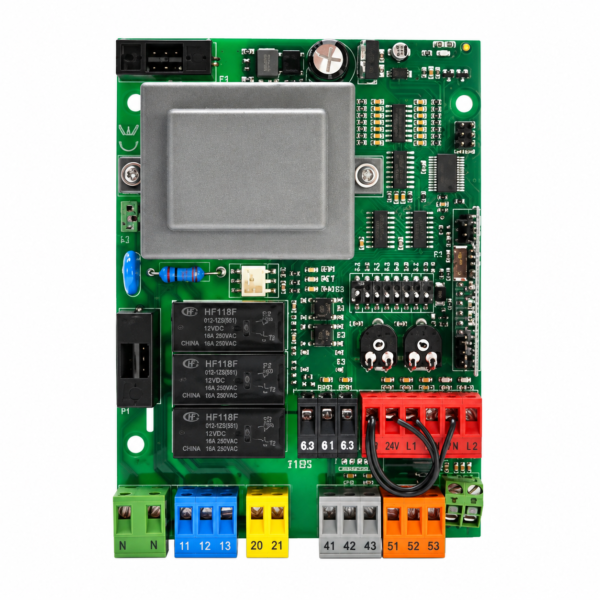

BFT SHYRA AC control board for automatic gate systems and access control in Oman
BFT Control Boards

BFT SHYRA AC SL Control Board in Oman | 230 V, for DEIMOS AC

In stockSKU 2610718

BFT SHYRA AC SL 230 V control board for DEIMOS AC sliding gate operators, with a 433.92 MHz dual-channel receiver built in. Trimmers and dip switches rather than a display, removable terminal blocks, LED fault reporting and two verified safety inputs including an 8k2 edge. BFT designed it as a direct replacement in the DEIMOS AC A600, and it also goes in where an older MIZAR board was — though the handsets need renewing on that route. Stocked in Muscat.

Price
Original price was: 100 OMR.Current price is: 82 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

The BFT SHYRA AC is the 230 V control board fitted inside DEIMOS AC sliding gate motors. It carries a built in radio receiver and sets up on trimmers and dip switches. We stock the BFT SHYRA AC control board in Oman and fit and commission it ourselves.

BFT SHYRA AC specifications

TypeBuilt in control panel, one 230 V sliding operator
Panel supply230 V single phase
Operator supply230 V single phase, 500 W max
ReceiverDual channel, built in, 433.92 MHz
ProgrammingTrimmers and dip switches
Work timeAdjustable, 0 to 90 seconds
TerminalsRemovable blocks
Safety inputsTwo verified, one for an 8k2 edge
DiagnosticsLED fault reporting

Sliding or barrier

BFT makes this board in two versions and they are not interchangeable.

VersionForMotor range
SHYRA AC SLSliding gatesDEIMOS AC
SHYRA AC BABarriersMOOVI

The sliding version has a work time trimmer the barrier version does not. If you are replacing a board, read the old one before ordering.

Replacing an older board

The BFT SHYRA AC control board in Oman is mostly a repair sale. BFT designed this panel as a direct swap for the DEIMOS AC A600. It also goes in where an older MIZAR board was, which turns a dead gate into an hour of work. One warning on that route: the receiver is new, so the old handsets will not open the gate afterwards. Budget for new ones.

Fitting the BFT SHYRA AC control board in Oman

We isolate the mains, photograph the wiring and move it to the new terminals. Trimmers set the work time and the dip switches set how the photocells and the edge behave. Handsets pair last.

Common questions

Will it fit a Deimos AC A800? Ask us before you order. BFT documents this board for the A600, and the A800 is not confirmed in any source we can point to.

I am replacing a MIZAR. Will my remotes still work? No. The receiver on this board is a different generation, so budget for new handsets at the same time.

What is the work time trimmer for? It sets how long the motor runs, up to ninety seconds. On limit switch installations you add a few seconds past the stopping point.

It arrived with wire bridges fitted. Do I remove them? Only the ones you are replacing with real devices. Leave the rest, or the board reads a missing safety input as a fault.

New handsets after a board swap are the two channel Mitto Cool C2. Browse the rest under BFT control boards.

Technical data

Product Specifications

BFT SHYRA AC SL Specifications

  • Brand: BFT
  • Model: SHYRA AC SL 230
  • International code: 2610718
  • EAN: 8027908511980
  • Type: built-in control panel for one 230 V sliding gate operator
  • Panel power supply: 220–230 V 50/60 Hz
  • Operator power supply: 230 V single-phase, max 500 W
  • Radio receiver: dual channel, incorporated, 433.92 MHz
  • Programming: trimmers and dip switches
  • Work time: trimmer, 0–90 s — SL version only
  • Terminal blocks: removable
  • Safety inputs: two verified, one dedicated to an 8k2 safety edge
  • Diagnostics: LED-based fault reporting
  • Fits: BFT DEIMOS AC A600 — direct replacement
  • Replaces: MIZAR boards — handsets must be renewed
  • Not the same as: SHYRA AC BA, the barrier version for MOOVI
  • Not the same as: SHYRA AC SL 120, the North American 120 V board
  • Country of origin: Italy
