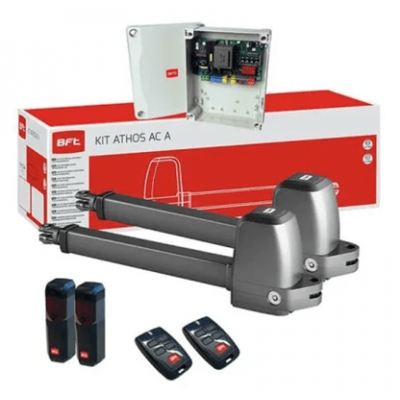

The BFT ATHOS AC A25 is a 230 V irreversible ram operator for swing gates. It takes a leaf up to 2.5 m and 700 kg. It opens to 90 degrees in 14 seconds, and reaches 110 degrees at full travel. We fit the BFT ATHOS AC A25 Oman kit across the Sultanate.
Left hand or right hand: check before you order
ATHOS rams are handed. BFT builds two versions of the same motor and they are not interchangeable.
| Version | BFT code | Fits |
|---|---|---|
| ATHOS AC A25 AR | P935108 00002 | Right leaf, seen from inside |
| ATHOS AC A25 AL | P935109 00002 | Left leaf, seen from inside |
A two-leaf gate needs one of each. Order two of the same hand and one of them will not mount. Stand inside the property looking out, and tell us which leaf you are automating.
BFT ATHOS AC A25 Oman specifications
| Max leaf width | 2.5 m |
| Max leaf weight | 700 kg |
| Motor voltage | 230 V |
| Power | 280 W |
| Control unit | ALENA SW2 |
| Rod stroke | 300 mm |
| Maximum angle | 110 degrees |
| Time to 90 degrees | 14 seconds |
| Locking | Mechanical, irreversible |
| Release | Triangle key |
| Duty | Semi-intensive |
| Protection | IP54, -20 to 55 degrees |
Why the bigger ATHOS carries less
This confuses people, and the reason is simple once you see it.
| Model | Max leaf | Max weight | Rod stroke |
|---|---|---|---|
| ATHOS AC A25 | 2.5 m | 700 kg | 300 mm |
| ATHOS AC A40 | 4 m | 400 kg | 400 mm |
Both use the same 280 W motor. A ram pushes near the hinge, so what limits it is turning force, not weight. Double the leaf length and the same motor holds roughly half the weight.
So read both numbers together. A 3 m leaf at 500 kg suits neither model. That one needs a heavier range from our BFT swing gate motors.
Common questions about the BFT ATHOS AC A25 Oman kit
Do I need an electric lock as well?
Usually not. This operator is irreversible, so it holds the leaf shut on its own. Articulated arm motors are reversible and do need one.
What does a work time limit switch mean?
There are no switches at the ends of travel. The board is set by time instead, and slowdown runs before each stop.
Will it fit if my pillar is recessed?
Often yes. BFT designed the body to sit inside a niche. Where the hinge sits far back, an articulated arm operator works better.
How often can it run?
BFT rates it semi-intensive, which suits a villa or small compound. A busy public entrance wants an intensive-rated motor from our swing gate motors range.
