CAME BXL 400 KG Sliding Gate Motor in Oman

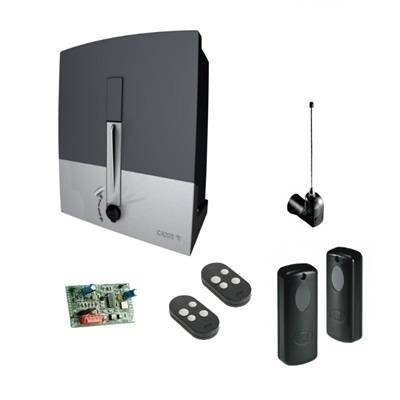

CAME BXL 400 KG Sliding Gate Motor

• CAME BXL Up to 400 kg
• Model: 801MS-0141
• BXL04ALS – Automation with 24V motor, complete with electronic board with dip switch settings, built-in radio decoding, movement management and obstacle detection for gates up to 400 kg and 10 m in length
• RAL7040 grey cover
• Solution for sliding gates in residential settings
• Encoder-based movement control
• Complies with the rules on impact forces
• Ready for operation in case of power outage
• Self-diagnosing, hardwired safety devices
• Control board with terminal blocks, dip switches and storage for up to 25 users
• On-board rolling code decoding

Operational Limits

• Model: 801MS-0141
• Max. length of leaf: 10 m
• Max. weight of leaf: 400 kg
• Pinion module: 4

Technical Characteristics

• Protection rating: IP44
• Power supply: 230 AC (50/60 Hz)
• Power supply to motor: 24V DC
• Absorption: 7 A max
• Power: 170 W
• Duty cycle: 50%
• Thrust: 350 N
• Operating temperature: -20C to +55C
