CAME BX708ALS Sliding Gate Motor in Oman

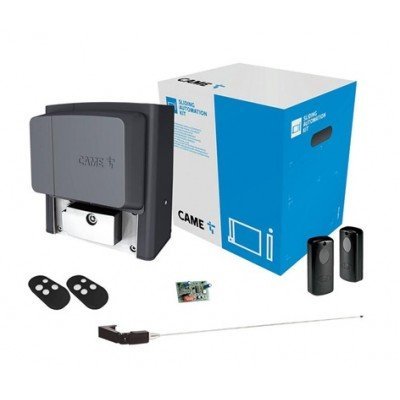

CAME BX708ALS Sliding Gate Motor

• CAME BX Up to 800 kg
• Solution for sliding gates in residential settings

Main Features

• Encoder-based movement control
• Control board with terminal blocks, display and storage for up to 250 users
• Self-diagnosing safety devices
• Ready for installation of magnetic limit switches
• The safety inputs can be configured to directly control the 8k2 Ohm resistive sensitive-safety edges
• Developed with CONNECT technology for remote digital control via gateway or locally via CAME KEY

Technical Data

• Model: 801MS-0031
• Protection rating: IP44
• Power supply: 230 AC (50/60 Hz)
• Power supply to motor: 230V
• Absorption: 2.5 A
• Power: 520 W
• Manoeuvring speed: 10.5 m/min
• Duty cycle: 30%
• Cycles/Hour: 17
• Thrust: 800 N
• Pinion module: 4
• Operating temperature: -20C to +55C
