BFT CVZ Steel Rack in Oman | Module 4, 30 x 12 mm, 1000 kg

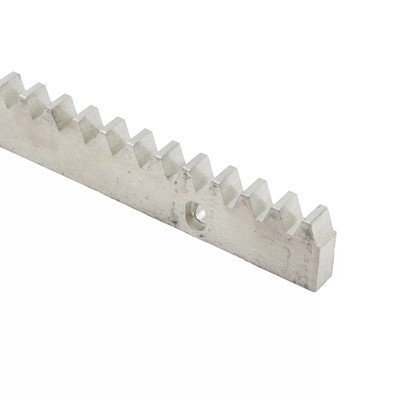

The BFT CVZ is a galvanised steel gear rack, one metre long, in a 30 by 12 mm section. It carries gates up to 1000 kg. We stock the BFT CVZ steel rack in Oman by the metre and cut it to your gate.

BFT CVZ specifications

Steel or nylon

We stock both, and the choice is about gate weight rather than budget.

A nylon rack on a heavy gate wears at the tooth root and starts skipping. Steel costs more per metre and outlasts the motor.

Which motors it fits

The BFT CVZ steel rack in Oman fits more than one brand. Module 4 is a gear standard, not a brand one. Any module 4 pinion meshes with module 4 rack. This piece suits BFT sliding motors and the Beninca BULL range alike, because both run an M4 pinion.

Tell us the motor model and the gate length and we will work out how many metres you need.

Fitting the BFT CVZ steel rack in Oman

The supports bolt to the gate frame and the rack screws to them. That lets us set the height so the teeth clear the pinion by a millimetre or two. Lengths butt together with the tooth pitch carried across the joint. Get that wrong and the gate clicks at every join.

Common questions

How do I join lengths? Butt them end to end and keep the tooth pitch running through the joint. Use the last tooth of one length to space the first tooth of the next.

Does it come with the fixings? Yes. The screws and the mounting supports are in the box. You are buying a complete metre, not a bare bar.

Which motors does it fit? Anything with a module 4 pinion. That covers our BFT sliding range and the Beninca BULL motors.

Why is steel dearer than nylon? Load and life. Nylon is fine on a light residential gate and will not last on a heavy one. The extra per metre buys years.

Browse the rest under BFT racks and spare parts.
