APRIMATIC AP 350

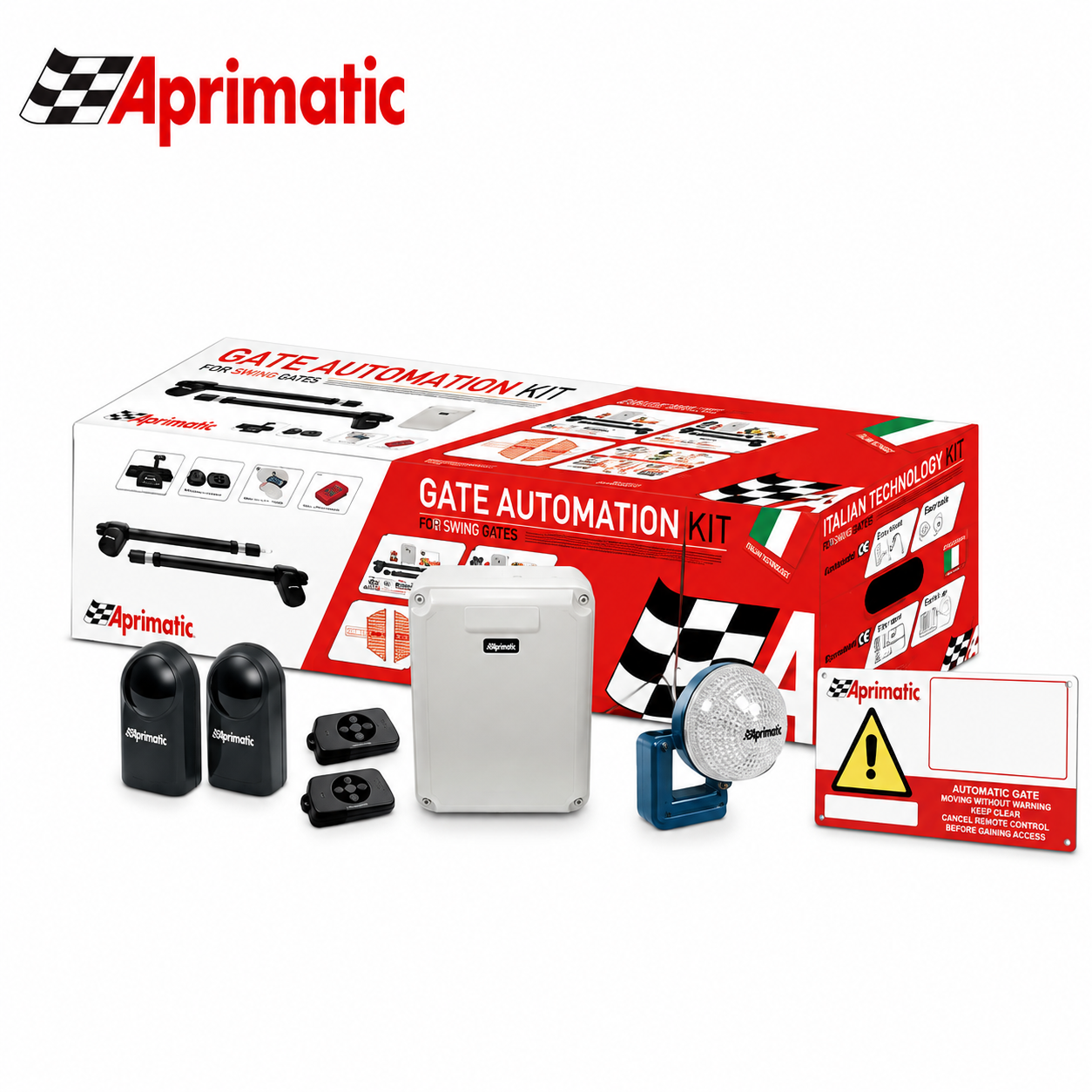

APRIMATIC AP 350 Swing Gate Motor

• AP 350 Swing Gate Operator
• Residential use for gates up to 3m and 350kg
• Worm gear transmission for greater reliability
• Irreversible motor for maximum door hold when closed
• Quick and easy installation with screw-on fixing brackets

Technical Data

• Mains Power Supply: 230 Vac
• Max Door Width: 3 M
• Max. Door Weight: 350 Kg
• Max Number Of Cycles: 50 Cycles/day
• Degree Of Protection: IP44
• Max Absorbed Power: 290W
• Max Absorbed Current: 1.3 A
• Stem Exit Speed: 1.8 Cm/s
• Stem Stroke: Max 400mm
• Thermal Protection: 150C
• Operating Temperature: -20 to +70C
• Capacitor: 8uF
• Engine Weight: 6 Kg
