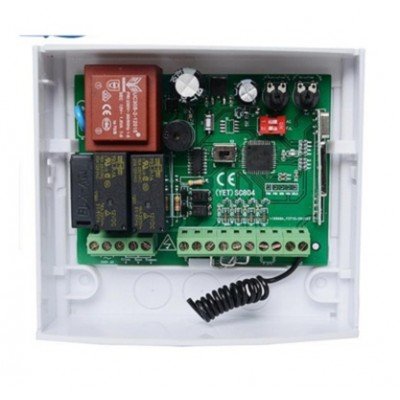

Rolling Shutter Tubular Controller in Oman

Rolling Shutter Tubular Motor Controller

• A controller dedicated to electric door control, with functions such as setting stroke, automatic door closing with delay, bounce upon resistance, over-current detection, limit switch and other functions
• Widely used in garage doors, supermarkets and other places

Features

• Remote control: 433M 1527
• Auto close delay time: 5-120S
• Running/journey time: 0-120s
• Hand switch: open-close-stop-open-close recycle
• Photocell: auto open after checked some resistance
• Momentary mode when closing, selectable via DIP switch 2 (ON: momentary mode open)

Specification

• Working voltage: 220V AC
• Output voltage: 220V AC
• Working Frequency: 433.92Mhz
• Max running time: 120s
• Memory: 30 pcs remote control
• Controller provides a +12V DC power output terminal VCC, all signal input is 5V

Dip Switch Function

• DIP switch 1 (AC): auto-close delay time function setting, ON with function and OFF without that function
• DIP switch 2: close momentary function setting, ON with function and OFF without that function
• When the motor open time exceeds the running time setting, the motor will stop work and will not do the auto-close function
