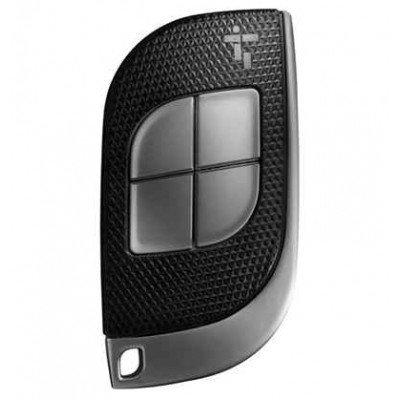

CAME TTSD4RKS Remote Control in Oman | 4 Channel, Dual Frequency
Genuine CAME TTSD4RKS, code 806TS-0230. A four channel rolling code handset on two frequencies, 433.92 and 868.35 MHz, that can copy an older Came TOP, TAM or TWIN remote. It leaves the factory set to 868.35 MHz, so we set it to your receiver. Held in Al Khuwair.
Availability: 10 in stock
Open every day, 8:00 am to 10:00 pm
- Authorized dealerOfficial brand distribution
- Supply and installationOur own technicians across Oman
- Manufacturer warrantyClaims handled locally in Oman
Overview
The CAME TTSD4RKS remote in Oman is a four button rolling code handset for Came gates and barriers. It works on two radio frequencies, and it can copy the code from an older Came handset. We stock it in Al Khuwair and set it up before you collect it.
CAME TTSD4RKS remote specifications
| Reference | 806TS-0230, model TTSD4RKS |
| Channels | 4 |
| Coding | Rolling code |
| Frequency | 433.92 MHz or 868.35 MHz, selectable |
| Range | 50 to 150 m |
| Battery | 1 x CR2032 lithium |
| Size | 38 x 73 x 11 mm |
| Body | Polycarbonate and Zamak |
| Temperature | -20 to +55 °C |
Check the CAME TTSD4RKS remote frequency
This handset leaves the factory set to 868.35 MHz. The other gate brands we sell run on 433.92 MHz. It must match your receiver, and we set it before you collect it.
Came make their plug in receiver cards in both frequencies. If you do not know yours, bring the old handset or photograph the card. A gate such as our CAME ATI A5000 needs the card that matches.
Copying an old Came remote
It can learn the code from a Came TOP, TAM or TWIN handset. A lost or worn remote does not mean starting again. Bring the old one to the counter and we will copy it across.
Came make this series in rolling code and in fixed code. This is the rolling code one. If your gate takes fixed code, ask us before you buy.
Common questions
My old Came remote has two buttons. Can this replace it?
If it is a Came TOP, TAM or TWIN, yes. The two extra buttons stay unused until you need them.
How do I change the battery?
A removable compartment holds one CR2032 lithium coin cell. Change it when the range starts to drop.
Does it need setting up before it works?
Yes. Its frequency is set first, then it is paired to the receiver. We do both when you collect it.
Is the range really 150 metres?
Came quote 50 to 150 metres. Walls, the receiver aerial and the surroundings decide where in that range you land. See all Came remote controls for other handsets.
Technical data
Product Specifications
CAME TTSD4RKS Specifications
- Channels: 4
- Coding: Came Rolling Code
- Radio frequency: 433.92 MHz or 868.35 MHz, selectable
- Factory setting: 868.35 MHz
- Max radio range: 50 to 150 m
- Code combinations: More than four billion
- Self-learning: Copies Came TOP, TAM and TWIN handsets
- Battery: 1 x CR2032 lithium, 3 V
- Battery compartment: Removable
- Dimensions: 38 x 73 x 11 mm
- Material: Polycarbonate and Zamak
- Operating temperature: -20 to +55 °C
- Receiver cards: 001AF43S for 433.92 MHz, 001AF868 for 868.35 MHz
- Brand: Came
- Model: TTSD4RKS
- Code: 806TS-0230
- EAN: 8050456084248
- Not the same as: the fixed code TTS handsets, or the Came TOP range
