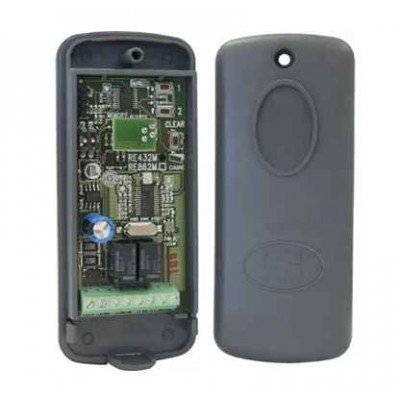

CAME RE432M 433.92 MHz external radio receiver
Came Control Boards

CAME RE432M receiver in Oman

In stockSKU 001RE432M

CAME RE432M external two-channel 433.92 MHz receiver for CAME TOP, TAM, ATOMO D, TWIN and TTS remotes. It runs on 12 to 24 V AC or DC and is rated IP54. We stock it in Oman and our engineers install it. It is a receiver, not a control board. The remotes, control panel and antenna are separate items.

Price
Original price was: 65 OMR.Current price is: 58 OMR.

Availability: 10 in stock

Open every day, 8:00 am to 10:00 pm

  • Authorized dealerOfficial brand distribution
  • Supply and installationOur own technicians across Oman
  • Manufacturer warrantyClaims handled locally in Oman

Overview

CAME RE432M receiver Oman stock: we hold this two-channel 433.92 MHz receiver for CAME remotes. It is a CAME radio receiver, not a control board. It picks up your remote’s signal and closes a contact for the gate’s control panel. Our engineers fit it and set it up on site. CAME’s own code is 001RE432M.

CAME RE432M receiver Oman specifications

BrandCAME
ModelRE432M (CAME code 001RE432M)
TypeExternal receiver, surface-mount
Channels2
Frequency433.92 MHz
Remote memory250 remotes (version 2), 50 (version 1)
Compatible remotesCAME TOP, TAM, ATOMO D, TWIN and TTS series
Outputs2 relays (OUT1 monostable, OUT2 monostable or bistable)
Relay rating24 V DC max, 1 A
Supply12 to 24 V AC or DC
Protection ratingIP54
Operating temperature-20 to +55 °C

What’s included

This listing is for the receiver only. The remotes, the control panel and the antenna are separate items. We stock CAME TOP 432EE remote controls and the CAME TOP-A433N antenna.

Installing the CAME RE432M in Oman

We pick a shaded spot within reach of the gate, because CAME rates the receiver to +55 °C. Then we fit the receiver and antenna and give it a 12 to 24 V supply. Its outputs are wired to the control panel’s inputs. Last, we teach it your remotes and test the range.

CAME RE432M receiver Oman questions

Will my existing remotes work with it?

If they are CAME TOP, TAM, ATOMO D, TWIN or TTS remotes, yes. It is the receiver for CAME TOP remotes and those other CAME series. Other brands are not on CAME’s list, so ask us first. TWIN remotes must be the TW2EE or TW4EE.

Does it replace the gate’s control panel?

No. It is an external receiver. The control panel still drives the motor.

Can it switch a 230 V light or lock directly?

No. CAME rates each relay output for 24 V DC at 1 A at most. Use it to signal the control panel instead.

How many remotes can it hold?

Version 2 stores 250 and the original stores 50. Check the version with us before you order a large batch of remotes.

See more CAME products or browse CAME swing gate motors.

Technical data

Product Specifications

CAME RE432M Receiver Specifications

  • Brand: CAME
  • Frequency: 433.92 MHz
  • Channels: 2
  • Remote memory: 250 remotes (version 2), 50 (version 1)
  • Compatible remotes: CAME TOP, TAM, ATOMO D, TWIN and TTS series
  • Model: RE432M (CAME code 001RE432M)
  • Type: External receiver, surface-mount
  • Outputs: 2 relays (OUT1 monostable, OUT2 monostable or bistable)
  • Relay rating: 24 V DC max, 1 A
  • Supply: 12 to 24 V AC or DC
  • Protection rating: IP54
  • Operating temperature: -20 to +55 °C
