BENINCA BILL30M Automatic Swing Gate Opener Motor
- 230 Vac, up to 2.5 m per door leaf
- Irreversible 230 Vac electromechanical geared motor
- Neat design and size, particularly suited to forged iron gates
- Easy and quick to install due to compact size and installation geometry
- Worm protected by a scraper ring and stainless steel stem
- Suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents
- Easy access release from above
- Available in right or left version
- BILL is the ideal motor gear to install on wrought-iron gates up to 2.5m

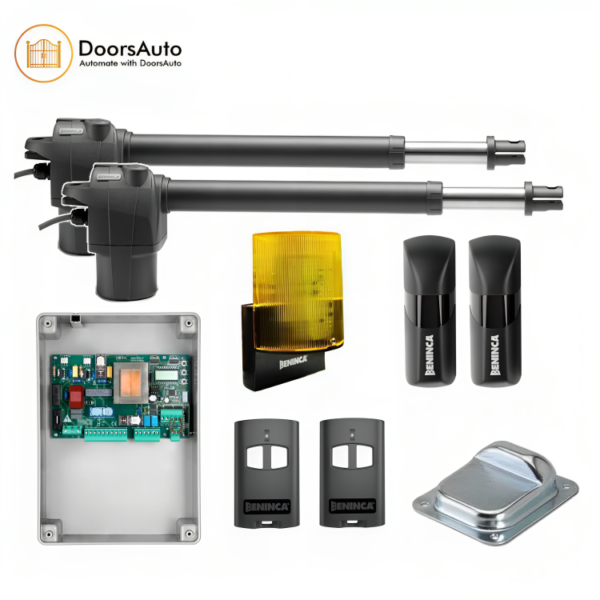

BENINCA BILL30M Kit Contains
- 2 x BENINCA BILL30M 230 Vac Swing Gate Motor
- 1 x HEADY 230 Vac control unit
- 1 x LAMPI.LED 230 Vac LED flashing light
- 1 x PUPILLA.R Pair of fixed photocells
- 2 x To.Go Remote control
- 2 x Fixing Bracket
- 1 x Exit Push Button
- 2 x Manual release keys
BENINCA BILL30M Technical Data
- Power supply: 230 Vac (50-60Hz)
- Motor supply: 230 Vac
- Max absorbed current: 1.1 A
- Maximum thrust: 2800 N
- Opening time: 16 sec
- Standard stroke: 300 mm
- Max stroke: 320 mm
- Duty cycle: 30%
- Protection level: IP54
- Built-in control unit: No
- Operating temperature: -20C to +50C
- Lubrication: Grease
- Leaf max dimension: 2.5 m
- Weight: 6.1 kg
- Kit weight: 14.6 kg
