ACM Rolling Shutter Motors

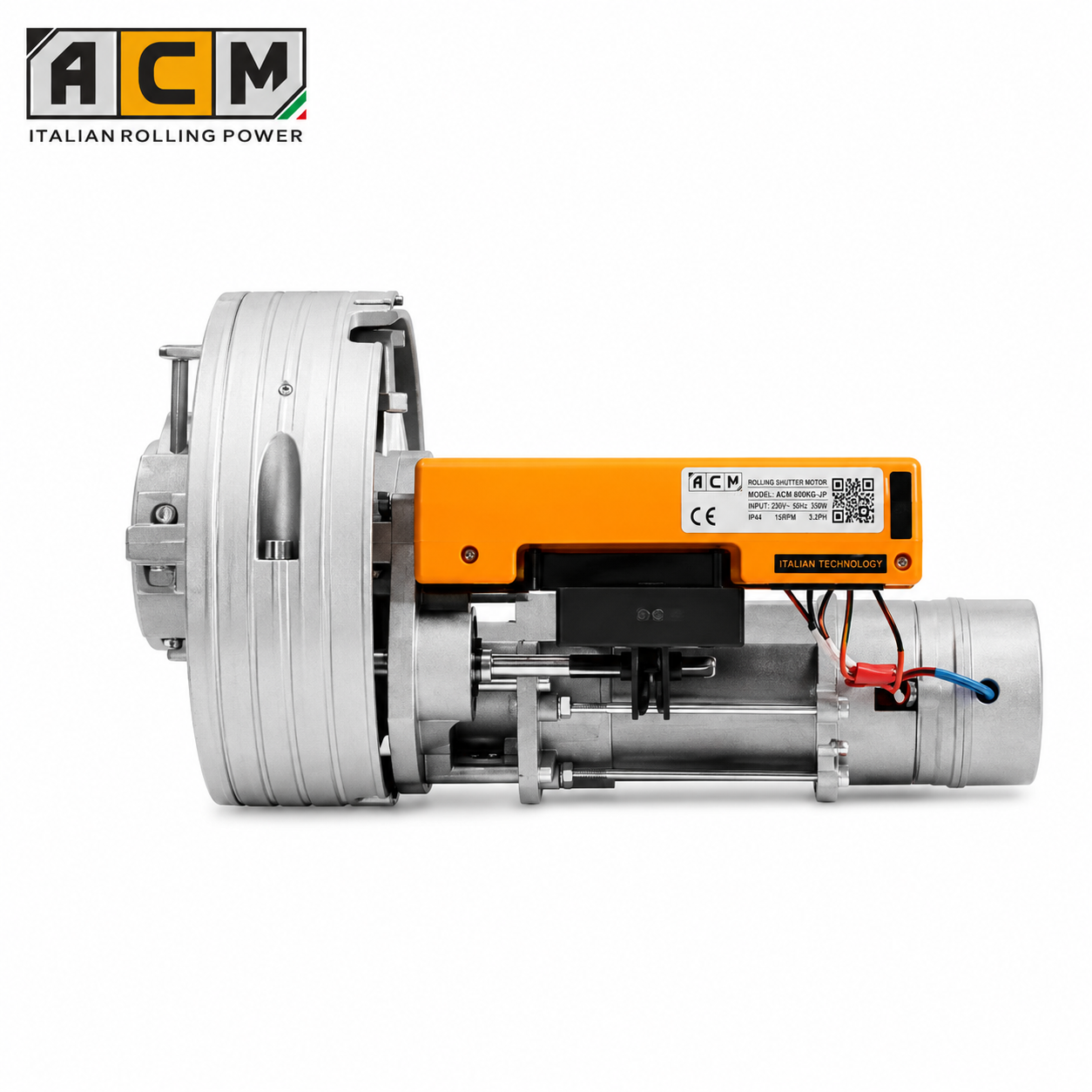

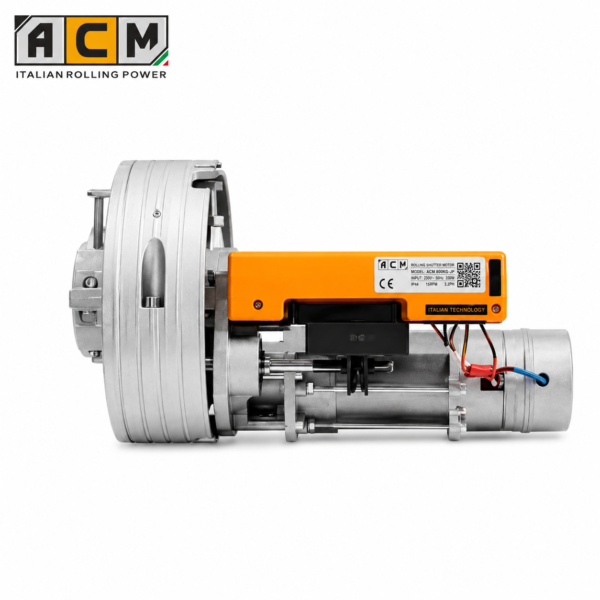

ACM 170Nm 140kg Rolling Shutter Central Motor Kit (Italy) in Oman
ACM Italian-made 230V central rolling shutter motor kit, 170Nm torque, 140kg lifting capacity, manual override.
- Authorized dealerOfficial brand distribution
- Supply and installationOur own technicians across Oman
- Manufacturer warrantyClaims handled locally in Oman
Overview
The ACM 170Nm 140kg Rolling Shutter Central Motor Kit is a premium Italian-engineered automation solution designed for automatic rolling shutters with a maximum lifting capacity of 140kg. Powered by a reliable 230V single-phase motor, this heavy-duty central motor delivers 170Nm of torque, ensuring smooth, quiet and efficient shutter operation.
Designed for long-lasting performance, the motor kit includes a 60mm rolling tube, 205mm pulley spring box and 100mm spindle with a 205mm diameter. During a power failure, the integrated manual override mechanism allows the rolling shutter to be operated manually.
Key Features
- Original ACM 170Nm Rolling Shutter Central Motor Kit
- Made in Italy
- Suitable for rolling shutters up to 140kg
- Powerful 170Nm torque output
- 230V single-phase motor
- 60mm rolling tube
- 205mm pulley spring box
- 100mm spindle with 205mm diameter
- Supports remote control and wall switch operation
- Manual override for emergency operation during power failure
Kit Includes
- 1 x ACM 170Nm Central Rolling Shutter Motor
- 60mm Rolling Tube
- 205mm Pulley Spring Box
- 100mm Spindle (205mm Diameter)
- Motor Mounting Accessories
- Installation Instructions
