Datacom DC-PT-xx-09-yy

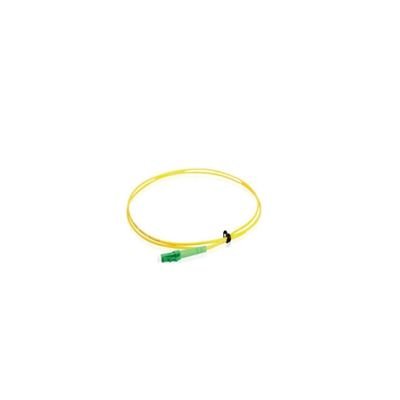

DC-PT-xx-09-yy – Fiber Optic Pigtail (Singlemode)

• Datacom pre-terminated fibre optic pigtail supporting fusion splice field termination applications, meeting ANSI/TIA 568.D-2 and FOCIS compliance
• 900 micron tight-buffered construction; one end factory-terminated, other end unconnectorized for splicing
• Single mode pigtails are ITU-T G.657.A2 graded fibre, available with APC and UPC connectors
• Standard lengths of 1, 1.5 and 2 metres

Technical Specification

• Fibre Type: Single Mode OS2 (09/125)
• Buffer: 900 micron tight buffered
• Termination: Factory-terminated one end
• Standards: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), EN50173-1, ITU-T G652.D OS2, ITU-T G657 A2
