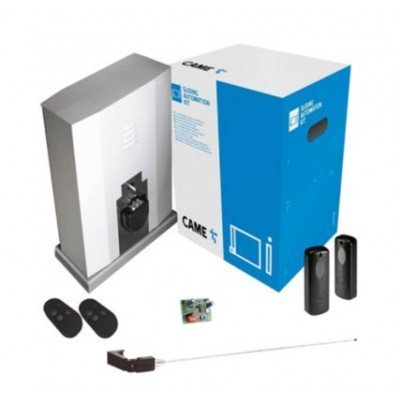

CAME BY-3500T Industrial Sliding Gate Motor in Oman

CAME BY-3500T in Oman

The CAME BY-3500T in Oman is a genuine 3-phase industrial sliding gate motor for gates up to 3,500 kg.

It’s built for heavy industrial sites, with sturdy mechanics and self-diagnosing safety devices as standard.

We stock it in Muscat for industrial, warehouse, and high-security gates across Oman.

The control board, radio decoder, and mechanical end stops are all built into the motor housing.

CAME BY-3500T Specifications

• Brand: CAME
• Model: BY-3500T
• Max. leaf weight: 3,500 kg
• Max. leaf length: 23 m
• Power supply: 230-400V AC three-phase (50/60 Hz)
• Power supply to motor: 400V
• Maximum draw: 8 A
• Power: 1000 W
• Manoeuvring speed: 10.5 m/min
• Cycles/hour: 8
• Thrust: 3,500 N
• Pinion module: 6
• Protection rating: IP54
• Operating temperature: -20C to +55C
• Motor’s heat protection: -25C to +70C

Fit and Installation Notes

This motor suits industrial sliding gates up to 3,500 kg and 23 metres in leaf length.

Its 3-phase power supply is built for intensive daily use, not light residential duty.

We size the installation to your gate’s exact weight and length before confirming the fit.

What’s Included

The listing is the BY-3500T motor unit, with its control board and receiver built in.

Mechanical end stops are included and fitted to the rack during installation.

Mains wiring, the gate’s own rack, and civil work are arranged separately with our team.

Common Questions About the CAME BY-3500T

How long a gate can this handle?

Up to 23 metres in leaf length, as well as the 3,500 kg weight limit.

Does it need a separate control panel?

No. The control board and radio receiver are built into the motor.

Is this suitable for a three-phase supply only?

Yes. It runs on a 230-400V three-phase supply, built for the demands of industrial sites.

What’s the warranty?

CAME covers this motor with a 3-year manufacturer’s warranty.
